Article number 106-530-L02
Locking foot, 200mm
Confidence in Every Configuration
- Specialist oversight
- Contact before production
- Technical drawing included
Description
Specifications
locking foot with plate
This locking foot is recommended for use with a 200 mm wheel. It is ideal for applications where structures need to be movable but securely locked in place. Examples include warehouse trolleys, gravity shelves, and work tables.
When you push the pedal down, the locking foot goes down. How far this stroke is, can be determined by turning the foot in or out. To raise the foot again, press the other pedal. The method of assembly is shown in the illustrations. You use two tubes that are parallel and connect them with two BMS-3 connecting sets.
| Properties | |
| Material | Galvanised steel |

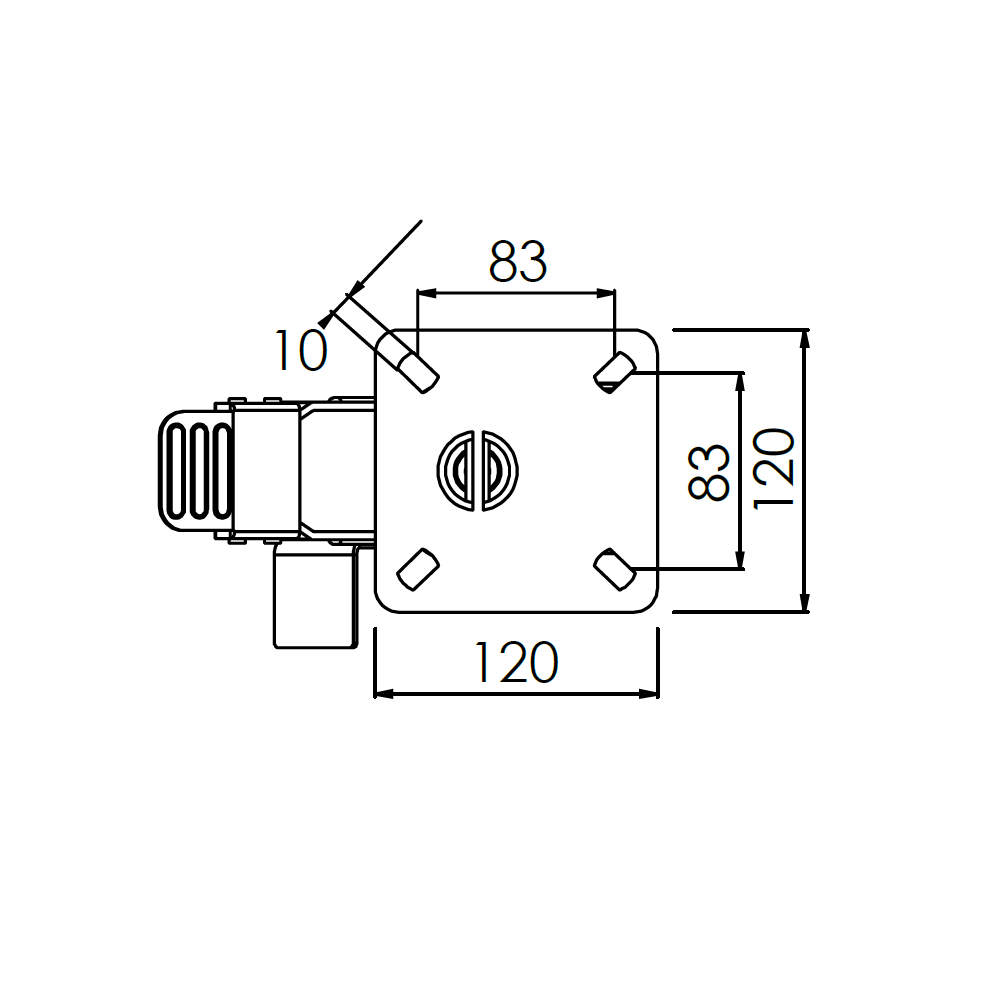

| Mounting plate dimensions (mm) | 120 x 120 x 5 |
| Distance of holes (mm) | 83 x 83 |
| Diameter holes (mm) | 10 |
| Diameter foot (mm) | ø80 |
| Minimum stroke of foot | 208 (from brake) 252 (on brake) |
| Maximum stroke of foot | 253 (from brake) 295 (on brake) |
Article number 106-530-L02
Weight: 2,802 kg
Base diameter (mm)
ø80
Material
Galvanised steel
Maximum load (kg)
1000
Article number 106-530-L02
Locking foot, 200mm
€76,30
Excluding VAT
Delivery within 2-5 working days
