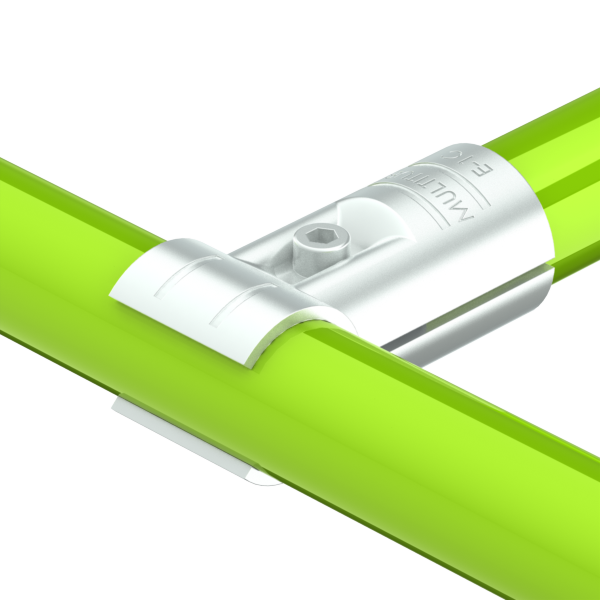

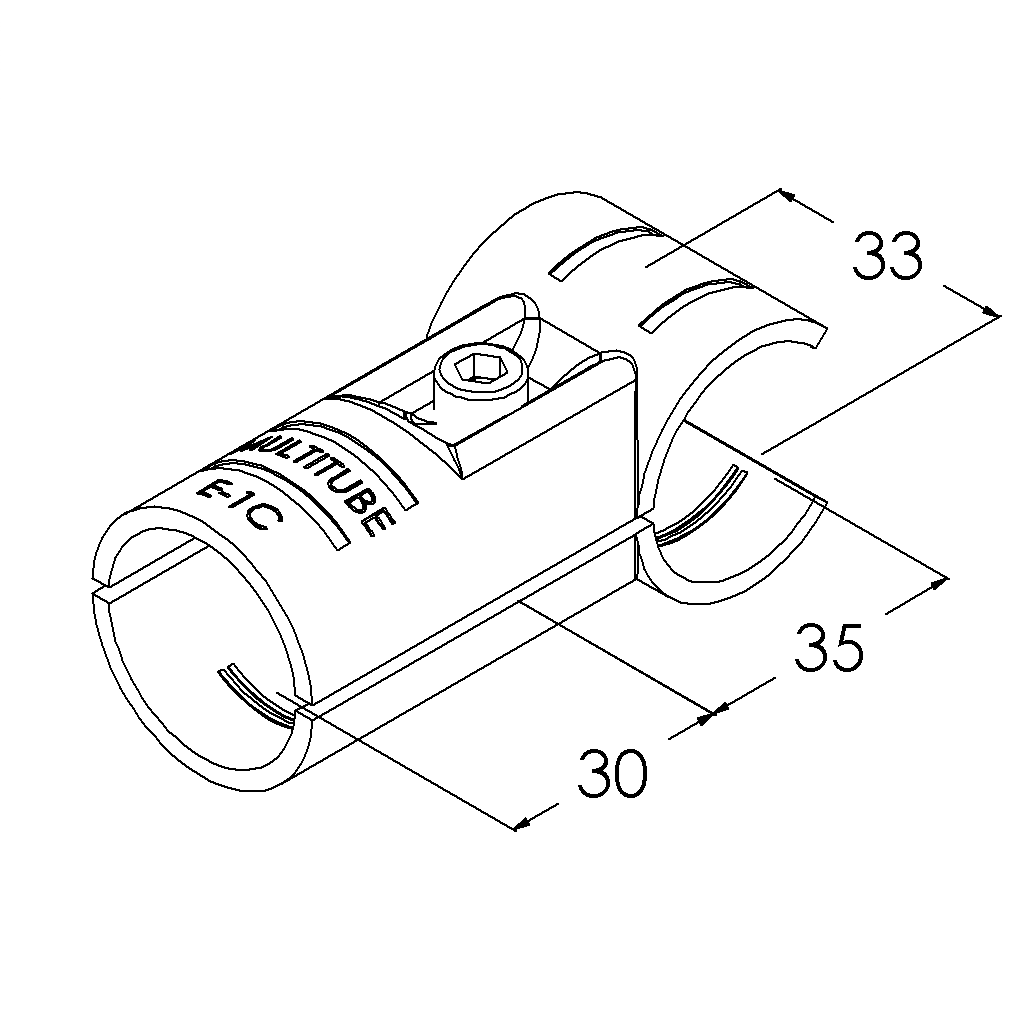

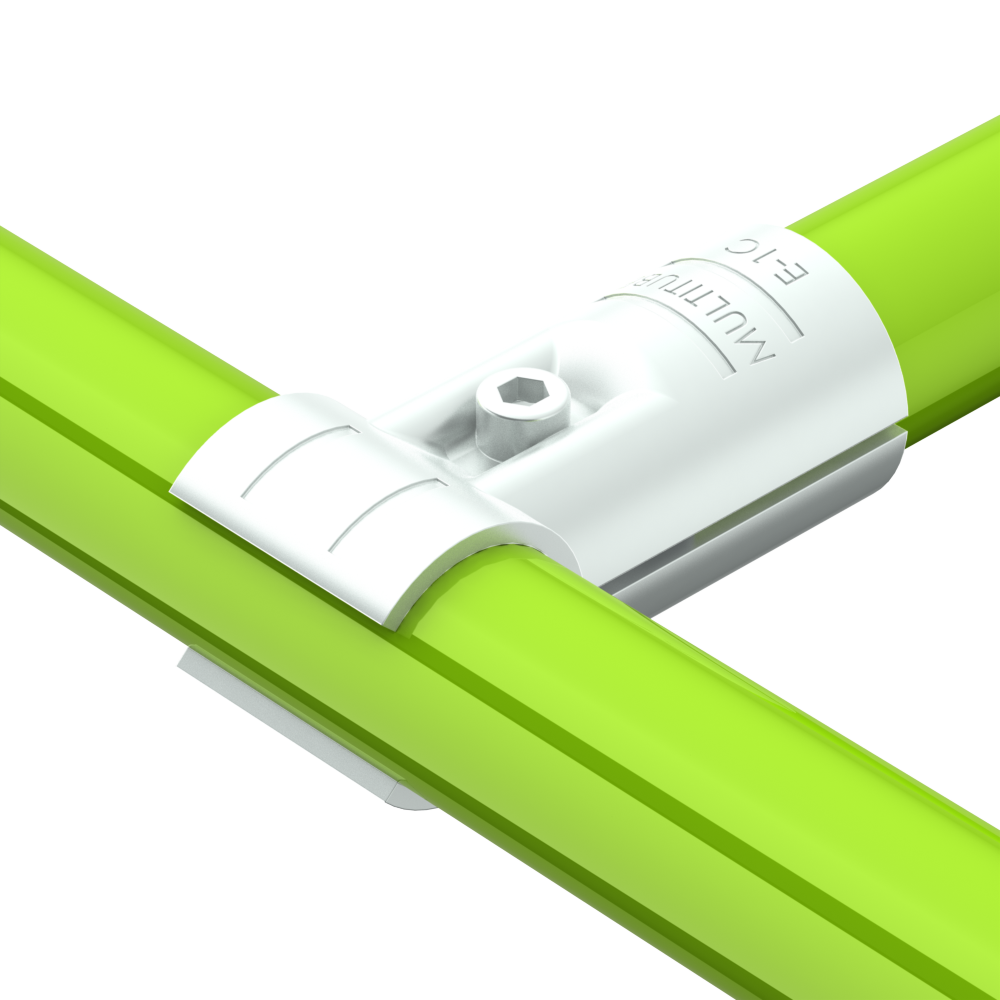

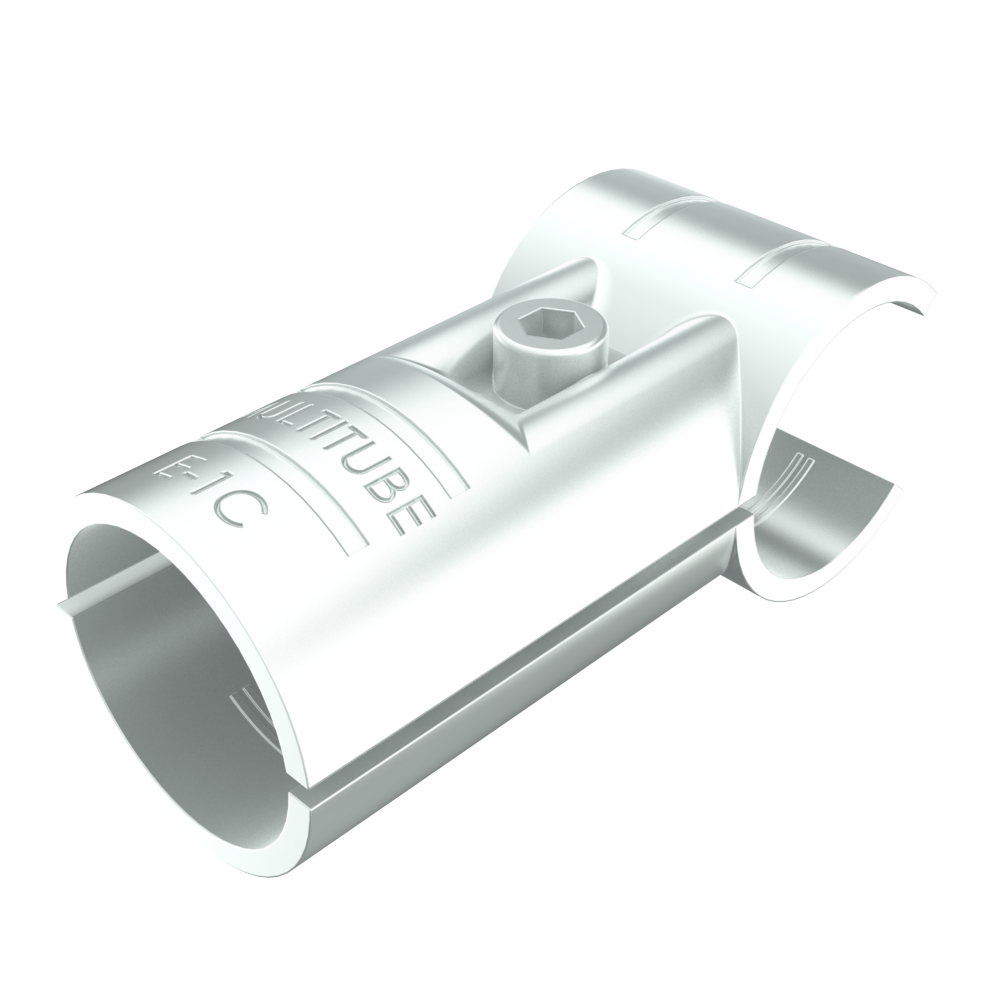

Pipe coupling T-piece 90°,open.

Coupling where 1 pipe passes through the open T-piece and the other pipe is at a 90° angle to it.

Installation of pipe couplings

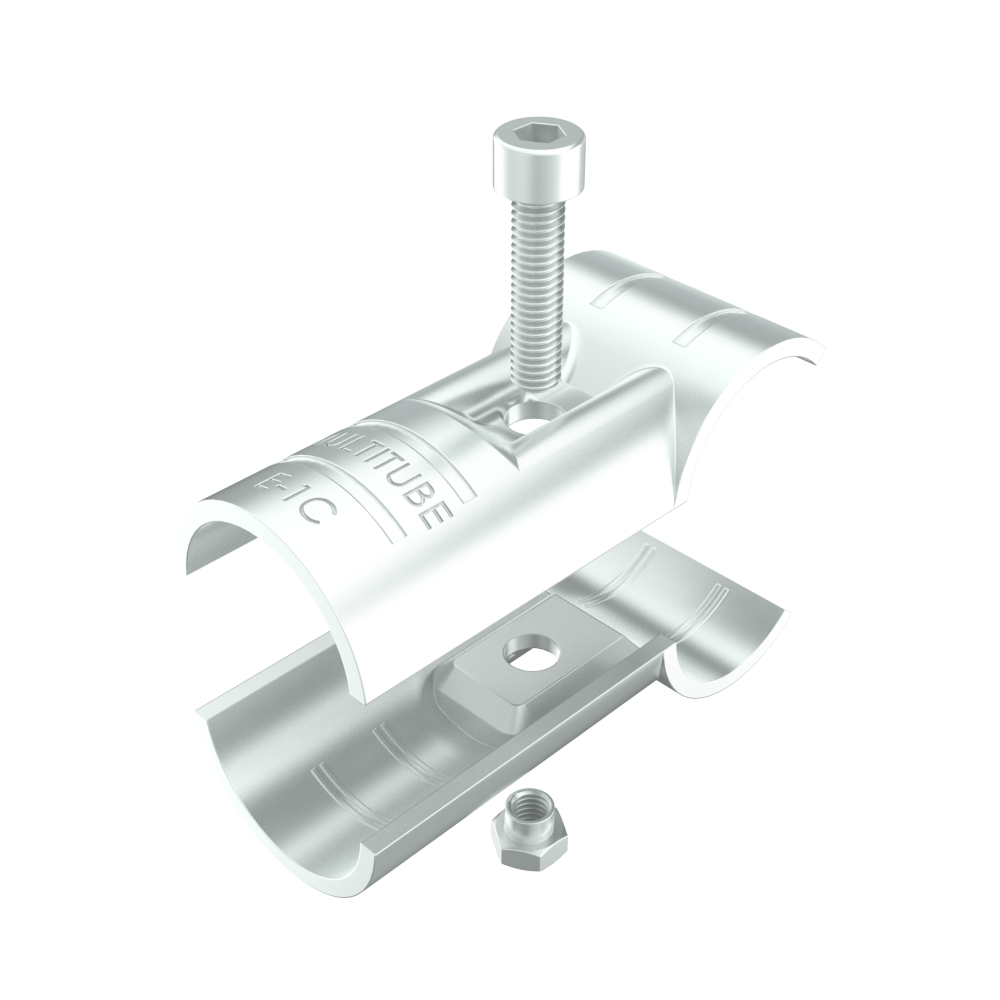

Assembly of Multitube pipe couplings is very easy due to the use of the M6x25 socket-head screw and T-nut that drops into the pipe coupling. Assembly is possible with both an Allen spanner and light battery powered impact screwdriver. Like all other products in our range, the couplers and tube clamps are tailored to a tube diameter of 27.6 mm.

Purchase options

Tube connectors are supplied as a set but are also available as loose tube connectors each and per full box.
